Oil-Filled Pressure Sensors

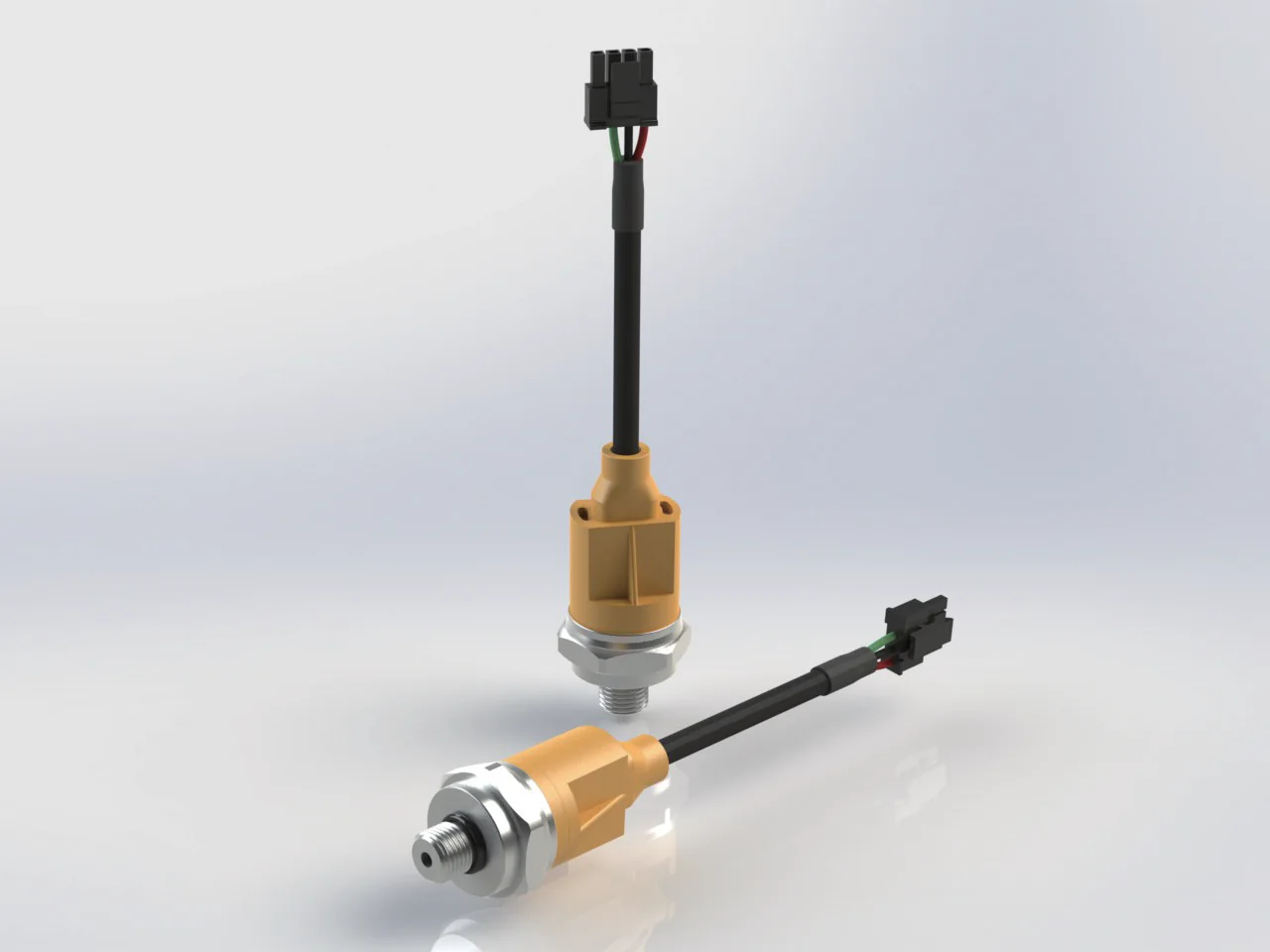

Oil-filled pressure sensors from 0.5 to 500 bar with SS316 wetted parts and analog or digital output.
Key specifications
| Pressure range | 0.5 to 500 bar |
|---|---|
| Output | 0.5 to 4.5 V, 4 to 20 mA, I2C, SPI, RS485 |
| Temperature reading | Pressure and temperature (P+T) available with digital output |
| Wetted material | SS316 |
| Process connection | M10, G1/4 and other fittings |
Overview
A stainless steel corrugated membrane and silicone oil transfer the process pressure to the sensing element. Output can be analog (0.5 to 4.5 V, 4 to 20 mA) or digital (I2C, SPI, RS485), and flexible mechanical fittings such as M10 and G1/4 are available.
Construction
The first drawing shows the traditional construction. The second adds a built-in RTD temperature sensor, which provides a pressure and temperature (P+T) reading with digital output.
Typical applications
- Hydraulic systems
- Medical industries
- Liquid cooling systems
- Petrochemical
- Compressors
- HVAC systems
