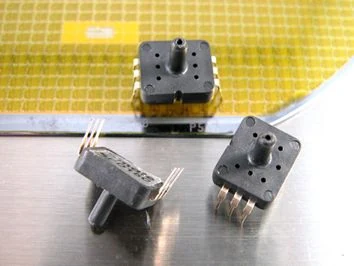

SPD Series Differential Pressure Sensor
Key specifications
| Pressure range | 0 to 100 psi |
|---|---|
| Pressure type | Differential |
| Output | I2C, analog, SPI |
| Supply voltage | 2.7 to 3.6 V / 4.5 to 5.5 V |
| Operating temperature | -40 to +125 C |
| Compensated temperature | 0 to +50 C |
| Accuracy | +/-1.8 %FS |
Ordering information
The SPD Series is available in 6 variants. Compare them below, then select a variant to see its part numbers.
| Variant | Pressure range | Output | Accuracy | Part numbers |
|---|---|---|---|---|
| SPD-015-I2C | 0 to 15 psi | I2C | +/-1.8 %FS | On request |
| SPD-015-A | 0 to 15 psi | Analog | +/-1.8 %FS | On request |
| SPD-015-S | 0 to 15 psi | SPI | +/-1.8 %FS | On request |
| SPD-100-I2C | 0 to 100 psi | I2C | +/-1.8 %FS | On request |
| SPD-100-A | 0 to 100 psi | Analog | +/-1.8 %FS | On request |
| SPD-100-S | 0 to 100 psi | SPI | +/-1.8 %FS | On request |
Part numbers for variants marked “On request” are available on request. Contact us.
